TRF SERIES

Perfect solution for plastic film recycling.
TRF Series machine combines waste size reduction, storage, feeding, extrusion and pelletizing all together, provides a perfect solution for plastic waste recycling, it is not only very easy to operate but also produce good quality recycled pellets at high output capacity.
  BACK

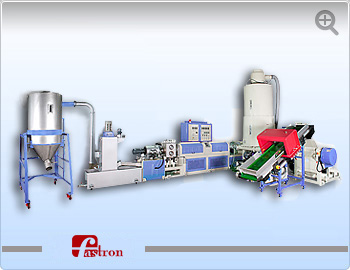

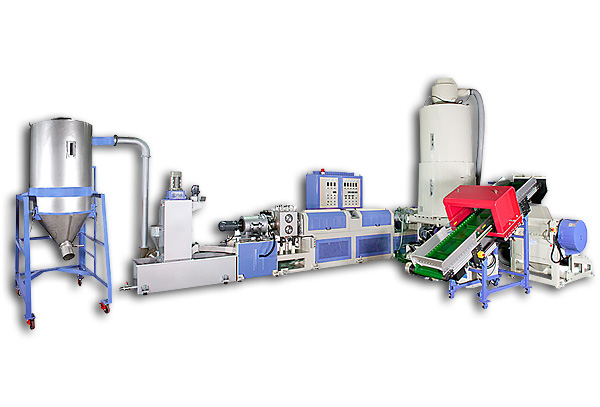

Recycling Machine TRF Series
  • BENEFITS
  • SPECIFICATIONS
  • PHOTOS
    Feeding system:
  • The waste is crushed and granulated first, so it can take both film waste & some lump waste. ( unlike the shredding drum system which can only handle film waste. )
  • After granulating, the small flakes or chips are blown an kept in a large storage tank. Under this tank, there is a stirring motor to push the waste into the side screw feeder, and then transport into the extruder without requiring heater bands.
  • The waste is then fed into the extruder by an inverter controlled screw feeder, allowing a smooth flow of material, increasing the capacity of the main extruder.
  • Factory Staff can also granulate the waste in advance and store in the big silo before feeding the extruder, making staff more efficient, unlike the drum systems which require staff to feed the conveyor all the times.
  • There is an option of a masterbatch or solid chips top feeder. Allowing the client the facility to add some additives, masterbatch or solid chips , if required.
    Special and unique design of die face cutting:
  • The pellets produced can be as the same standard and appearance as virgin granules.
  • Larger die face allows more die holes and bigger hole gap to avoid pellets clumping together. More holes leads to less resistance of material flow, so it reduces the tendency for material coming out from the vent.
  • Unique die design allows longer overlap gap between each hole, with bigger size cutting knife to ensure the longer lifetime. - Longer lifetime of cutting motor with running in slower & logical rpm due to larger die face and more holes.
    Centrifuge dewatering unit (option):
  • Allowing the pellets to dry completely. It is also compact, and space saving in comparison to the vibrating tank.
    Dual piston screen changer (option):
  • Has a 3 - 5 times larger filter area than slide type filters to save the labor time in changing filters, and the additional cost of the filter screens.
  • Continuous Non-stop operation, no need to shut down or slow down the speed of extruder.
Model TRF-65V TRF-85V TRF-100V TRF-120V TRF-150V TRF-180V
Material LDPE、LLDPE、HDPE、PP、ABS、PS
Capacity PE(kg) 100-150 150-250 250-350 400-550 600-800 800-1000
PP(kg) 80-120 120-180 200-250 300-450 500-700 700-900
Side feeding device with screw & barrel x 1 set
Storage tank (liter) 1500 2000 2000 2000 3000 3000
Feeding motor 5HP 7.5HP 10HP 15HP 20HP 30HP
Extruder
Screw Φ 65 85 100 120 150 180
L/D 32/1 32/1 32/1 32/1 32/1 32/1
Screw material SACM645 nitrided, and hard chrome plated
Motor + inverter 40HP 60HP 100HP 125HP 200HP 300HP
Barrel thermo Zone 3 4 5 6 7 9
Barrel cooling 1/4 HP*2 1/4 HP*2 1/2 HP*3 1/2 HP*3 1/2 HP*3 1/2 HP*3
Barrel material SACM645 nitrided, honed, hardness treatment
Screen changer ( Hydraulic slide type ) with pressure gauge
Filter diameter (MM) 150 200 200 250 300 350
Driving Motor 3HP 3HP 5HP 5HP 7.5HP 10HP
Die face cutting device  -  with 3pcs big knife
Cutter motor(inverter) 2HP 2HP 2HP 3HP 3HP 5HP
Cooling water pump 2HP 3HP 3HP 5HP 5HP 7.5HP
Vibration screen & water trough
Vibration motor 1/4 HP x2 1/3 HP x2 1/2 HP x2 1/2 HP x2 1/2 HP x4 1/2 HP x4
Pellet Blower motor 3HP 3HP 5HP 5HP 5HP 7.5HP
Options :
Water cooling tower Second stages extruder for heavy ink waste
Vacuum pump Quantitative feeder for masterbatch or solid chips

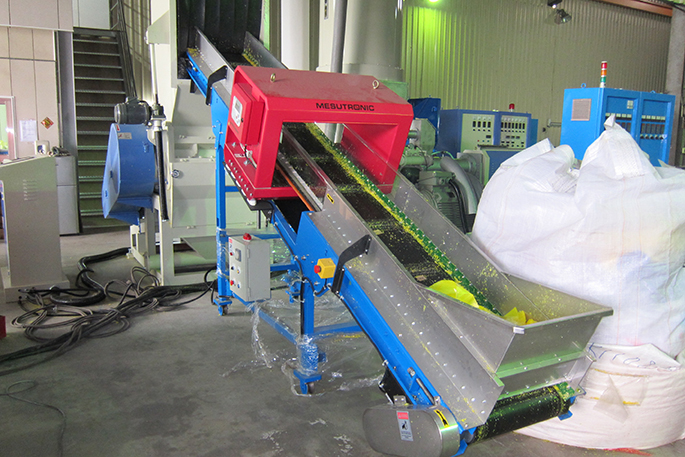

Metal detector with conveyer Double vented type barrel
Crusher + conveying blower Centrifuge dewatering drying device
Dual piston type screen changer ( larger filter area) Vibrating classifier
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
