HNT PLUS SERIES

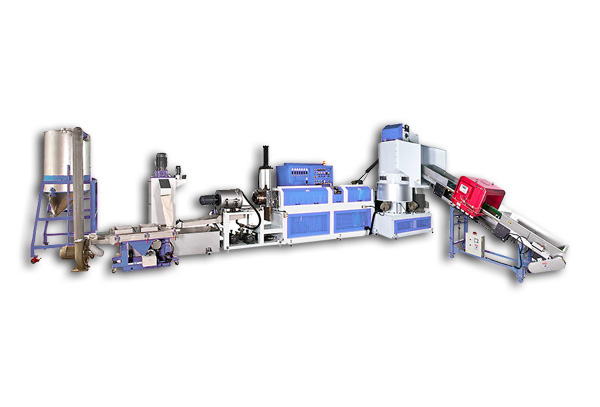

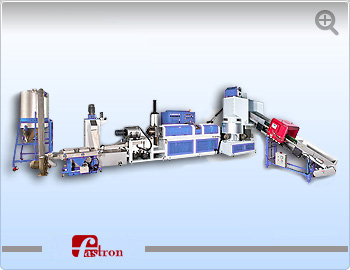

Tangential type three-in-one plastics recycling plant.
HNT Series machine turns plastic waste into high quality pellets that can be reused for many applications. It combines Shredder, Extruder and Die Face Pelletizer to a space-saving, energy-efficient and operator-friendly machine at affordable cost.

BENEFITS
SPECIFICATIONS
PHOTOS

The open/close for shredding drum is by means of moving aside by hydraulic for more safety, instead of lifting upward.
It can take film waste, cut-off pieces of PE shopping bags, yarn & tape waste and some granulated materials(regrinds). The loose materials are fed into the shredding drum by a conveyor, film-on-roll can be fed by the optional Nip-Roll Feeder, feeding is controlled and interlocked with the amperage of shredding motor, an optional Metal Detector can be added onto the conveyor to avoid any metals going into the machine.
The shredder adopts fixed and rotary blades, it cuts plastic waste into smaller pieces and heat them into a semi-molten condition that eases the process of the extruder.

Screw is designed and made based on years of practical experiences for maximum flexibility in processing various plastics while maintaining optimum melt quality at the highest output capacity.

The pellets produced can be as the same standard and appearance as virgin granules.
Larger die face allows more die holes and bigger hole gap to avoid pellets clumping together. More holes leads to less resistance of material flow, so it reduces the tendency for material coming out from the vent.
Unique die design allows longer overlap gap between each hole, with bigger size cutting knife to ensure the longer lifetime.
Longer lifetime of cutting motor with running in slower & logical rpm due to larger die face and more holes.

Allowing the pellets to dry completely. It is also compact, and space saving in comparison to the vibrating tank.

Has a 3 - 5 times larger filter area than slide type filters to save the labor time in changing filters, and the additional cost of the filter screens.
Continuous Non-stop operation, no need to shut down or slow down the speed of extruder.

Model		HNTplus-65V	HNTplus -85V	HNTplus -100V		HNTplus -120V	HNTplus -150V	HNTplus -180V
Material		LDPE、LLDPE、HDPE、PP、ABS、PS
Extrusion output	PE(kg/hr)	100 – 120	150 – 250	250 – 350		400 – 550	600-800	800-1000
	PP(kg/hr)	80 – 100	120 – 180	200 – 250		300 – 450	500-700	700-900
Conveyor
Motor		1/2 HP	1/2 HP	1/2 HP		1 HP	1HP	1HP
Size (MM)		600 x 3500	600 x 3500	700 x 3500		800 x 4000	800 x 4000	800 x 4000
Shredding unit
Drum Die (MM)		650	700	800		900	1000	1200
Rotary cutter		4 pcs	4 pcs	4 pcs		6 pcs	8pcs	8pcs
Stationary cutter		6 pcs	6 pcs	6 pcs		8 pcs	12pcs	12pcs
Motor		30 HP	40 HP	75 HP		100 HP	150HP	175HP
Extruder
Screw		65	85	100		120	150	180
L/D		32	32	32		32	32	32/1
Barrel heating zone		3	4	6		6	7	8
Motor + inverter		40 HP	60 HP	100 HP		125 HP	200HP	300HP
Screen changer ( Hydraulic slide type )
Filter diameter (MM)		150	200	200		250	300	300
Motor		3 HP	3 HP	3 HP		5 HP	7.5HP	7.5HP
Die head cutting device
Cutters used		3pcs
Cutter motor(inverter)		2 HP	2 HP	2 HP		3 HP	5HP	7.5HP
Cooling water pump		2 HP	3 HP	3 HP		5 HP	7.5HP	7.5HP
Vibration screen & water trough
Vibration motor		1/4 HP x2	1/3 HP x2	1/2 HP x2		1/2 HP x2	1/2 HP x4	1/2 HP x4
Pellets conveyer
Blower motor		3 HP	3HP	5 HP		5 HP	7.5HP	10HP
Options :
Water cooling tower					Second stages extruder for heavy ink waste
Vacuum pump					Nip roller feeding device
Metal detector with conveyer					Double vented type barrel
Dual piston type screen changer ( larger filter area)					Centrifuge dewatering drying device
Shredding motor inverter for speed control					Vibrating classifier
Shredding motor inverter for speed control					Vibrating classifier
SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
